CONTEC CMS5100 Patient Monitor (Adult Probes)
Original price was: ₹25,000.00.₹12,899.00Current price is: ₹12,899.00. "Inc. GST"
FEATURES OF CONTEC PATIENT MONITOR CMS 5100:
- Suitable for adult, pediatric and neonatal patient.
- Parameters measured: SPO2, NIBP, Pulse Rate, Temperature.
- Applicable for medicine, surgery, ICU/CCU, emergency room, paediatrics, obstetrics, and gynaecology
- 8” high brightness TFT LCD display
- Parameters: NIBP, SpO2 and pulse rate
- High brightness LED display of NIBP, SpO2 and pulse rate with red and yellow highlight LED
- Memory: Built-in Flash Memory
- Up to 2000 groups NIBP data storage and 78000 groups SpO2 data storage for up to 48 hours
- Powerful data storage and management (including trend table)
- Adjustable Visual and Audio alarms
- Built-in rechargeable Li-polymer battery backup (up to 4-6 hrs of working)
- Can be used for indoor and outdoor monitoring
Description
USES OF CONTEC PATIENT MONITOR
Contec patient monitor is an electronic device used for monitoring, measuring and recording various vital signs of the patient such as blood pressure, heart rate, glucose level for diabetic patients, body temperature and more. They are extremely useful to detect danger or health complications and monitor the progress of at-risk or bedridden patients, especially in the intensive care unit (ICU). Contec CMS 5100 patient monitor can be used to achieve a comprehensive diagnosis of the patient’s health.
WORKING OF CONTEC PATIENT MONITOR
Contec CMS 5100 patient monitor comes with sensors that capture vital information about the patient’s health. These are attached to the patient’s body and the data collected is then passed on to the capital equipment which is a monitor for further processing and interpretation and then presented to the doctors. The data transmission happens through interconnecting solutions like wires or PCBs. But this data needs to be converted into a readable format before presenting it to the doctors. This is done by an in-built software which breaks down the complex codes and simplifies the data in a readable format.
PRODUCT SPECIFICATIONS OF CONTEC PATIENT MONITOR CMS 5100
NIBP:
- Method: Oscillometry
- Mode: Manual/Auto/Continuous
- Measurement Range: 25-260mmHg
- Resolution: 1mmHg
- NIBP Accuracy: ±5mmHg
- Alarm: SYS/DIA/MAP
SpO2:
- Measurement range: 0%-100%
- Resolution: 1%
- Accuracy: ±2% (70%-100%) 0%-69% unspecified.
- Alarm range: 0-100%
Pulse Rate:
- Measurement range: 10 – 270
- Resolution: 1bpm
- Accuracy: ±2pm or ±2%
Temperature:
- Can measure temperature of adults, pediatric and neonatal patients.
Other Specifications:
- Dimension (LxWxH): 191 x 160 x 244 (mm)
- Net Weight: 1.5 kg

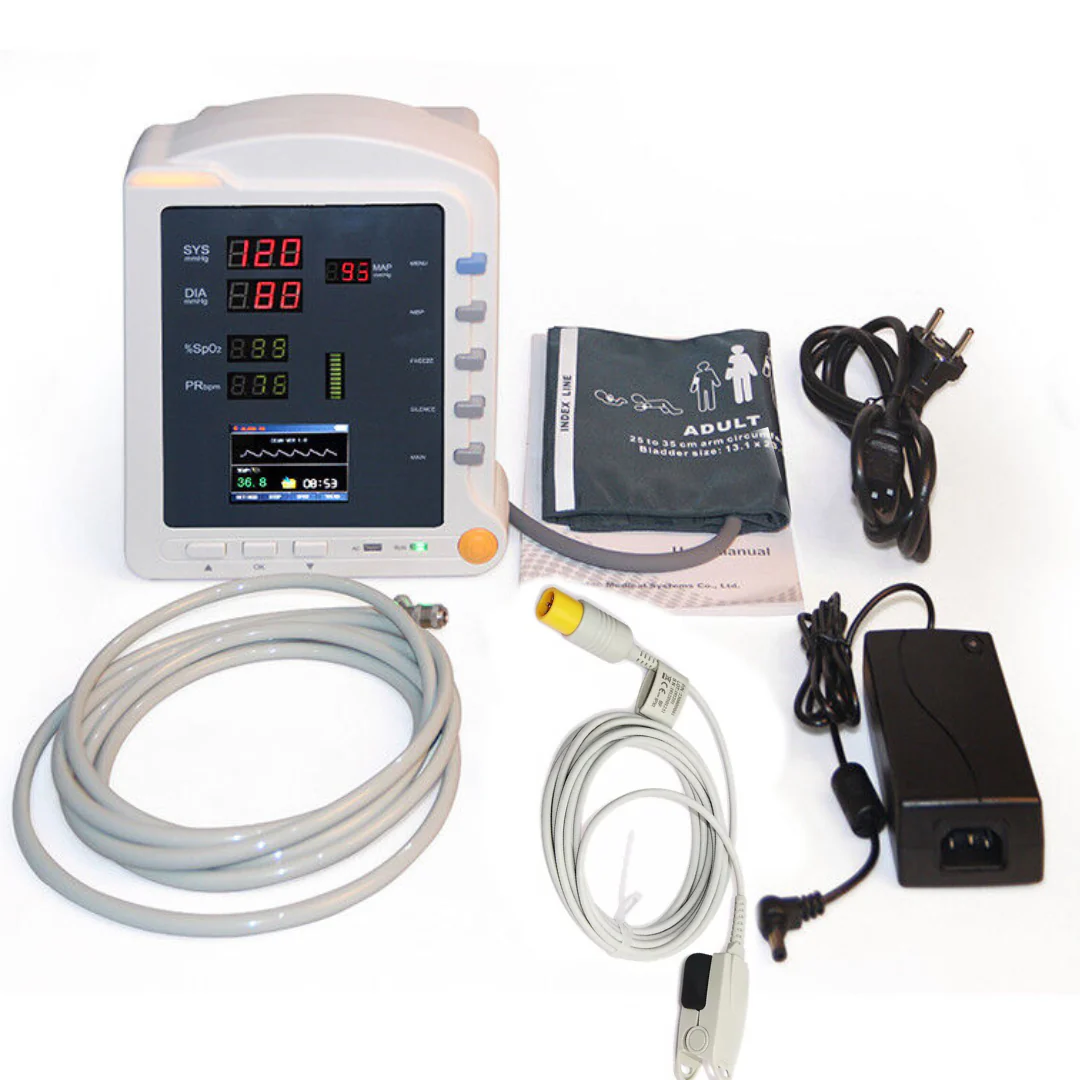

Content Of Box: Contec Patient Monitor
- Monitor
- Power connector and adaptor
- Adult/Neonatal cuff + cable (based on selection)
- SpO2 probe
- Temperature probe
- User manual
Warranty: 1 Year
