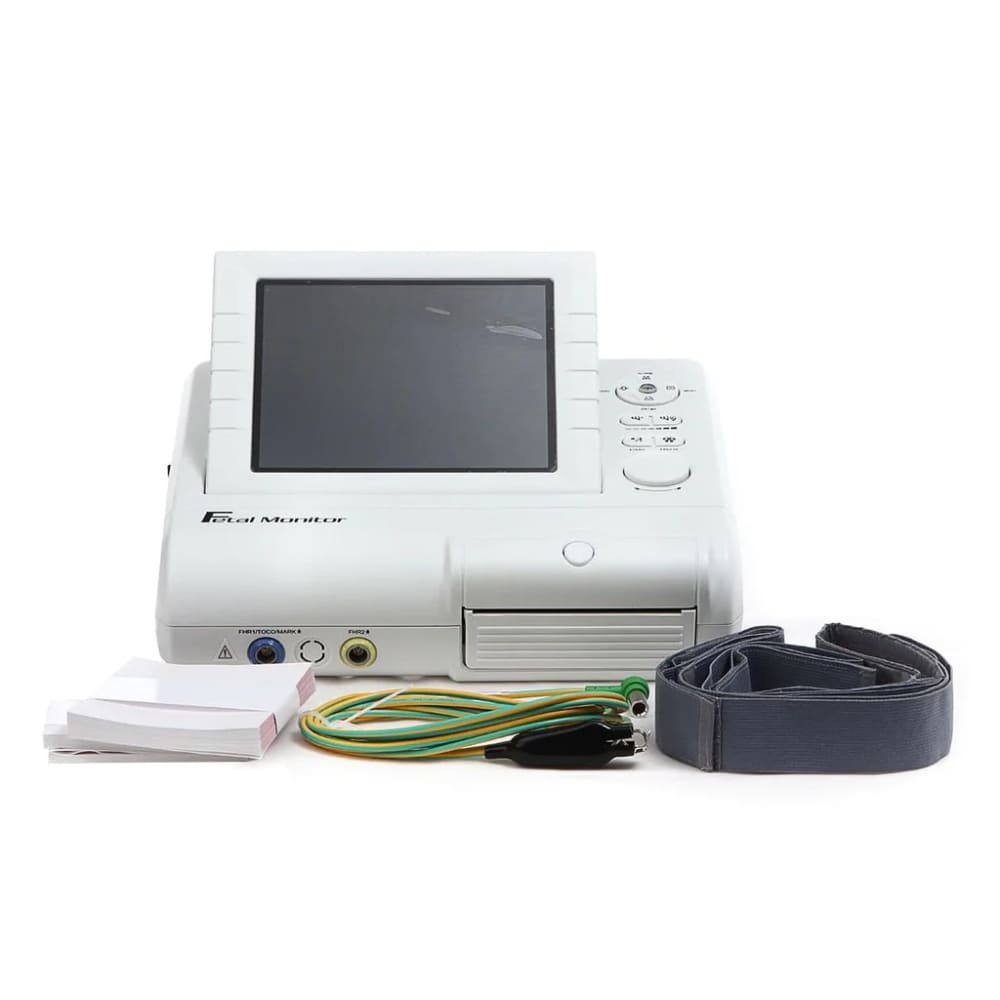

Contec CMS 800G fetal monitor
₹49,000.00 "Inc. GST"
Contec Fetal Monitor – CMS 800G can acquire fetal heart rate, and maternal uterine contraction when pregnancies over 28 weeks to provide reference data for clinical use. The monitor can be used individually or connected with a PC through RJ45 Interface for the purpose of central monitoring. It is only suitable for the equipment in hospitals, clinics, doctor’s offices and patients at home by professional medical personnel.
Free Domestic Shipping on Orders Above ₹ 1000
- 7 Days Exchange and Replacement
- Order yours before 2.30pm for same day dispatch
Description
CMS800G Fetal Monitor can acquire fetal heart rate, and maternal uterine contraction when pregnancies over 28 weeks to provide reference data for clinical use. The monitor can be used individually or connected with a PC through RJ45 Interface for the purpose of central monitoring. It is only suitable for the equipment in hospitals, clinics, doctor’s offices and patients at home by professional medical personnel.
Contec Fetal Monitor Specification
Safety
Type of protection against electric shock: Class â…
Degree of protection against electric shock: Type B applied part
Working Voltage: AC 100 V~240 V
Frequency: 50 Hz/60 Hz
P＜60 VA
Fuse: T1.6AL250V
Record paper: Z-fold paper
Print width: 112 mm
Valid print width: 104 mm
Paper speed: 1 cm/min, 2 cm/min, 3 cm/min(optional)
Network interface: RJ 45
Ultrasound probe
Nominal Frequency: 1.0 MHz
Work Frequency: 1.0 MHz±10%
Negative peak sound pressure : p_<1 MPa
Output beam intensity : Iob<20 mW/cm2
The peak time-space peak intensity: Ispta<100 mW/cm2
The average time-space peak intensity: Isata<10 mW/cm2
FHR
Range: 50 BPM~240 BPM
Resolution: 1 BPM
Accuracy: ±2 BPM
TOCO
Range: 0~100%
Resolution: 1%
Nonlinear error: ≤±10%
RZ way: manual
Fetal Marking
Manual button
In The Box
Fetal Monitor
A three-in-one Transducers(Ultrasound Transducerâ… , TOCO Transducer, Remote Marker)
A User Manual
Two abdomen belts
An earth line
Record paper(two sets)
A power cord
Two Fuses
Physical Characteristics
Dimension: 320 mm (L) × 260 mm (W) × 80 mm(H)
Weight: about 3 Kg
