Description

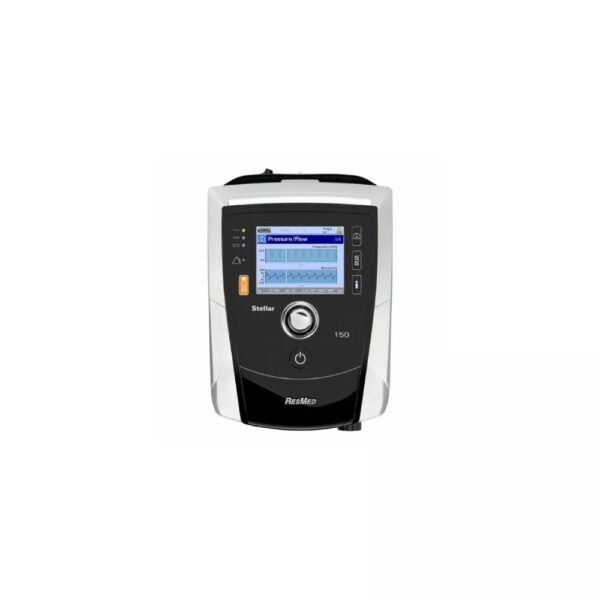

ResMed Stellar 150 ventilator is suitable for invasive and non-invasive ventilation, either at home or in a healthcare setting.
It is not a life support ventilator.
Stellar 150 also includes iVAP (intelligent Volume-Assured Pressure Support) technology to adjust to your changing respiratory needs.
FEATURES
| Stellar 150 | |
|---|---|
| Modes | iVAPS (intelligent Volume-Assured Pressure Support) with AutoEPAPST (Spontaneous–Timed)
PAC (Pressure Assisted Control) CPAP (Continuous Positive Airway Pressure) S (Spontaneous) T (Timed) |
| Pressure range | IPAP: 2–40 cm H2OEPAP: 2–25 cm H2O |
| TiControl™ | Ti Max 0.3–4 secTi Min 0.1–Ti Max |
| Respiratory Rate | 5–60 bpm |
| Rise Time | Min, 150–900 msec (approx.) |
| Trigger and Cycle | Five sensitivity settings |
| Adjustable alarms | High LeakLow Minute Ventilation
Low and High Pressure Low and High Respiratory Rate Apnoea Low and High FiO2 Low SpO2 Non-vented mask |
| Standard fixed alarms | Circuit disconnectedOver pressure
Blocked tube Internal battery empty |
| Dimensions (LxWxH) | 230 x 170 x 120 mm |
| Weight | 2.1 kg |
| Air filter | Electrostatic fibre mesh |
| Air outlet | 22 mm taper, compatible with ISO5356–1:2004 |
| Internal battery | Lithium-ion, 2 hours at EPAP 5, IPAP 15, 20 bpm |
| Power supply | AC 100–240V 50–60Hz,2.2A AC 110V 400Hz,
2.2A DC 24V/3A |
| IEC 60601–1 Classification | Class II (double insulation) Type BF Continuous operation |
| Data solutions | ResScanEasyCare Tx software and Tx Link |
Remote alarm II
- Alerts caregivers and medical staff when alarm is triggered.
- Long battery life and low battery alert designed to reduce downtime.
- Cable length ranges from 2 to 20 meters to suit your environment and needs.
- Easy to install and includes a wall bracket for easy mounting.
ResMed Power Station (RPS) II
- Weighing only 2 lbs, this battery is small and easy to pack up and go.
- Provides convenient power for up to 2 hours.
- A great choice for backup power during travel or power outages.
- Includes battery, power supply unit adapter and carry bag.
H4i heated humidifier
- Provides heated humidification for greater comfort during therapy.
- Easy to use and maintain.
- Electronic components are sealed off from the water for safety.
FiO2 and SpO2 monitor
- Pulse oximeter connects directly to the back of the device and is displayed on the screen.
- Eliminates the need for any additional external equipment.
- Simply connect the FiO2 kit to Stellar for live monitoring on the device.
CONTENT OF BOX
- Stellar device
- Hypoallergenic air filter
- AC power cord
- Carry bag
- 6’6″ (2 m) air tubing
- ResMed USB stick
- Low pressure oxygen connector
Warranty: 2 years
