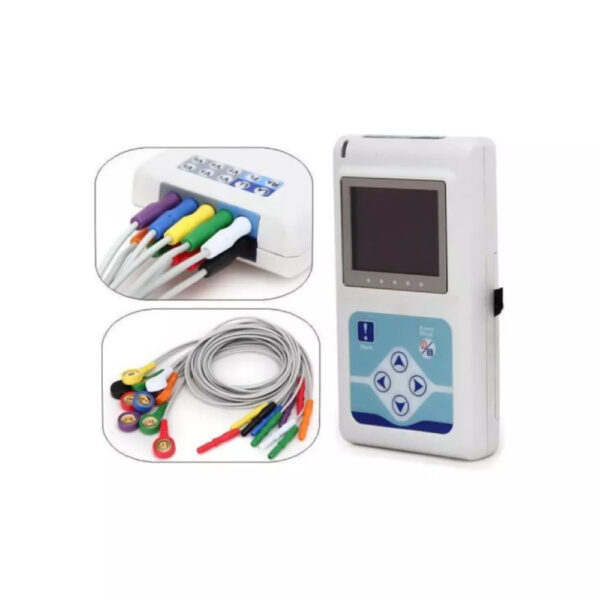

Contec TLC 5000 Holter System 12 Lead

Description

FEATURES

• With Advance Design And Technology. The Recorder Can Work Stably, Dependable And Durably.
• Be Provided With The Capability Of Anti-jamming And Aseismatic.
• Small Volume With OLED Screen. The Resolution Is 160#128.
• Be provided with functions waveform preview, record review, and event marketing.
• An accurate record of the start time of the data sampled owing to the real-time clock of itself.
• Avoid damage owing to the repeating inserting and pulling out by using the inbuilt TFcard to storage the data.
• The maximum capability can be 2gb, so the original data can be saved perfectly by no compression.
• the average review time of a single case can be less than 40 seconds by using an interface of USB 2.0.
• Record waveform details inexten so by the design of high precision sampling frequency.
• Record the state of pacemaker exactly by the higher sampling frequency.
• International standard of 12 leads, record 24-hour Drug with the same standard of the ECG.

PRODUCT SPECIFICATIONS

• Number of channels: 12 channels;
• Power: 2 AA size batteries;
• Scale voltage: 1mV± 5%;
• Standard Sensitivity: 10mm/mV± 5%;
• Noise level: ≤ 30μ V;
• CMRR: ≥ 60dB;
• Time constant≥ 3.2s;
• Scan speed: 25mm/s± 5%;
• Least measure signal: 50 µ V p-p;
• Product safety type: Type B (Internally powered).
• Recorder Features
• • Capacity:-2 GB
  • Sampling accuracy:- 12 Bit
  • Interface:-USB 2.0
  • Record Time:- 24 hours

STANDARD

• Number of channels: 12 channel
• Sampling Accuracy: 12bit
• Record Time: 24h
• Power: 2 Aa size Batteries
• Interface: USB 2.0
• Scale Voltage:1 mv+5%
• Standard Sensitivity: 10mm\mv+5%
• Noise level: <30uv
• CMRR: >60db:
• Low-frequency characteristics: Time constant >3.2s:
• Scan speed: 25mm\s+5%
• Enduring polarization voltage: +300mv Dc polarization voltage,                              sensitivity shifts<+10%
• Least measuring signal: 50 MVP-p
• Product safety type: Type B (internally  powered)

PHYSICAL CHARACTERISTIC

• Dimensions: 111(l)*60(w)*25(h)mm
• Weight:  About 105g ( without battery)

 Warranty : 1 Year
